Diff Locker Front or Rear?

last updated 05/05/2021

Diff lockers are great enhancements to four wheel drive vehicles. A diff locker locks each axle half in a diff together, thus forcing both wheels to rotate at the same speed. This means if one wheel has more traction it will receive more torque, rather than the torque being limited by the wheel with the least traction as is the case with a normal differential. Diff lockers mean you can get further offroad and do it slower and more safely than what’s possible with standard diffs. You can easily crawl up uneven terrain which reduces wear on both vehicle and track.

But where’s the best spot to put a differential locker, if you’re only getting one? Diff lockers can be installed in the front diff, rear diff, or both. You get a large step change in offroad performance from having only one diff locker so installing only one is a common arrangement. Should you chuck it up front or in the rear? There’s a few things to consider, with overall traction being an important parameter.

I’ve built a table to help explain how load and traction re-distributes on uneven terrain and how a placement of a diff locker affects the figures. The table applies to standard open differentials. I have assumed traction is proportional to load. This is accurate – the formula for friction is simply a friction coefficient multiplied by a force. In this case the force is the weight on the tyre. The total weight of the car is 100, and this is split across the four tyres. When the weight for a tyre is zero it means that tyre is completely unloaded and has no traction – it is in the air spinning freely.

To calculate traction of an axle without a diff locker, the lowest traction wheel for that axle is multiplied by two. Remember an open diff cannot multiply torque – both wheels of an axle will get the same torque up to the point at which the wheel with the least traction starts skidding.

To calculate traction of an axle with a diff locker, the traction at each wheel is added together.

For a car going uphill, the weight distribution shifts to the rear. The same result occurs if the vehicle is carrying cargo in the rear. Uneven terrain causes a weight and therefore traction shift across an axle. The same effect is seen in traction if the axle is level but one tyre is on slippery material whilst the other is on a surface with good grip.

car level, axles level
  Weight Total no lockers Total Front Locker Total Rear Locker Total Front and Rear Lockers
left right
front   axle 25 25 50 50 50 50
rear   axle 25 25 50 50 50 50
Total   Traction 100 100 100 100
car level, front wheel off ground
  Weight Total no lockers Total Front Locker Total Rear Locker Total Front and Rear Lockers
left right
front   axle 0 50 0 50 0 50
rear   axle 50 0 0 0 50 50
Total   Traction 0 50 50 100
car uphill or rear loaded, axles level
  Weight Total no lockers Total Front Locker Total Rear Locker Total Front and Rear Lockers
left right
front   axle 15 15 30 30 30 30
rear   axle 35 35 70 70 70 70
Total Traction 100 100 100 100
car uphill or rear loaded, front wheel off ground
  Weight Total no lockers Total Front Locker Total Rear Locker Total Front and Rear Lockers
left right
front   axle 0 30 0 30 0 30
rear   axle 50 20 40 40 70 70
Total   Traction 40 70 70 100

From the table we see it is irrelevant where the diff locker is placed in terms of overall traction. Arguments such as “the front wheel is more likely to lift up hill so the diff locker should be up front” or “there is more weight in the back so it should be placed in the rear” are invalid. With the car uphill on uneven terrain we have 70% traction regardless of diff locker placement. The traction transfer occurs to the exact same extent at the front and rear regardless of which wheel lifts in the air and regardless of what the weight distribution is, so that the overall traction is perfectly matched in a front vs rear comparison. This is true for all weight distributions and inclinations.

The extra traction delivered via a diff locker occurs due to a traction difference between each wheel. On uneven ground, traction difference is always equal between the front and rear axles. To unweighten a front wheel means the diagonally opposite rear wheel needs to be unweightened by the same amount. Why? Because between the four wheels, 100% of the car’s weight needs to be supported, and any weight differential between wheels on an axle needs to be offset by the same amount on the other axle to balance the weight of the vehicle. So despite the fact that a front wheel may be off the ground or the rear of the vehicle may be carrying more weight, the traction differential is always the same and a diff locker located in either the front or rear will always deliver the same improvement in traction.

So if diff locker position has no effect on traction then we need to arbitrate using other criteria. A diff locker in either the front or rear of the vehicle will prevent the engine revs surging when both opposite corners of the vehicle completely lose traction. When this occurs, the impact load when the spinning wheels come back onto the ground is stressful for the drive train. A single diff locker in any location will prevent this situation so will protect both the front and rear end – there is no preference in position in this case.

The rear of a vehicle is stronger, not having CV joints for steering and articulation. With a diff locker a large portion of an engine’s torque can be concentrated on a single wheel, thus the drivetrain to that wheel will be highly stressed and it’s preferable to do this at the rear of the vehicle where the design is inherently stronger. I have not personally had experience breaking CVs joints, but I have heard stories of diff locked front ends breaking CVs more often than those that aren’t, especially when also lifted. In fact so much torque can be generated with a front diff locker that I have heard of cases where the entire front diff assembly is twisted out of alignment. A front diff locker also makes it difficult to turn – the inside wheel of a locked front is turning too fast and tries to force the front wheels straight so you need to fight this effect with the steering wheel. Driving up a hill with a turn in it might require you to turn off the front locker to negotiate the turn. People with both front and rear lockers usually use the rear locker more often due the the front’s effect on turning.

Apart from stress negotiating obstacles, a front locker also stresses the CVs greatly when turning. Turning over uneven ground with a front diff locker is a recipe for breaking CV joints. Because of difficulty turning and CV stress, many with front lockers use them only on straight sections of track. A rear diff locker can be switched on and left on, as it provides easy steering and offers less risk of overstressing drivetrain components when turning. You can leave it on during corners of a trail so you still retain all the advantages of a locked diff during corners. You can leave it on when proceeding over steep terrain and be confident of being able to steer to adjust your driving line without breaking a CV. The standard installation for some diff lockers when getting both front and rear is that the front cannot be turned on without the rear on. The diff locker manufacturer is making people use the rear first due to their perception of front end CV risk and impact to steering. More evidence to add weight to this argument is that when a vehicle is fitted with a factory diff locker by the original manufacturer it is always in the rear. This includes the new hilux, which has a factory rear locker.

According to the arguments above, it is better to place the diff locker in the rear of a vehicle. This may change if your vehicle already has a limited slip rear differential. In this case the rear diff is capable of multiplying torque so you will get greater overall traction if the diff locker is placed in the front, however you should still consider the factors for placing it in the rear before making a decision. In my experience limited slip diffs are pretty useless and I’d prefer to blow away the limited slip diff and put the locker in the rear.

If you’re opting for an auto-locker, such as a Lokka, Lock Right or Detroit locker, then you need to consider the fact that these lockers can inadvertently lock on the bitumen when you don’t want them to, causing unpredictable handling. So placing the diff locker on the front axle will completely isolate it when you’re driving in 2WD on the bitumen, preventing any handling issues on road. So this is a factor to consider when determining where you want your auto-locker. For selectable diff lockers, such as air lockers and e-lockers, inadvertent locking is not an issue.

There are certain scenarios where one locker is better than the other. If one wheel is stuck in a hole or facing a ledge then the better locker position is on the axle with that wheel. When going up hill a front locker can help keep the car straight. Similarly, going down hill under engine braking, a rear locker can help keep the car straight. On average these scenarios don’t favour front or rear placement.

arb air locker entry into diff

Diff locker air line entry into the diff housing on the Hilux.

My hilux had a limited slip rear differential but it didn’t do much. Actually it seemed like it did nothing at all so I had no worries losing the LSD completely. I also wanted to minimize risk of mechanical failure in remote areas and didn’t like the effect of cornering when using a front diff locker, so I went with the rear diff locker for my vehicle. What a difference! Front or rear, a diff locker makes it easy to climb up uneven terrain, safer to climb down steep decents and easy to clear hump-dee-doos on sand. A worthwhile investment for your 4WD.

Some manufacturers offer factory diff locks. If you plan on doing some off road work then consider this option.

wheel lifted on sand

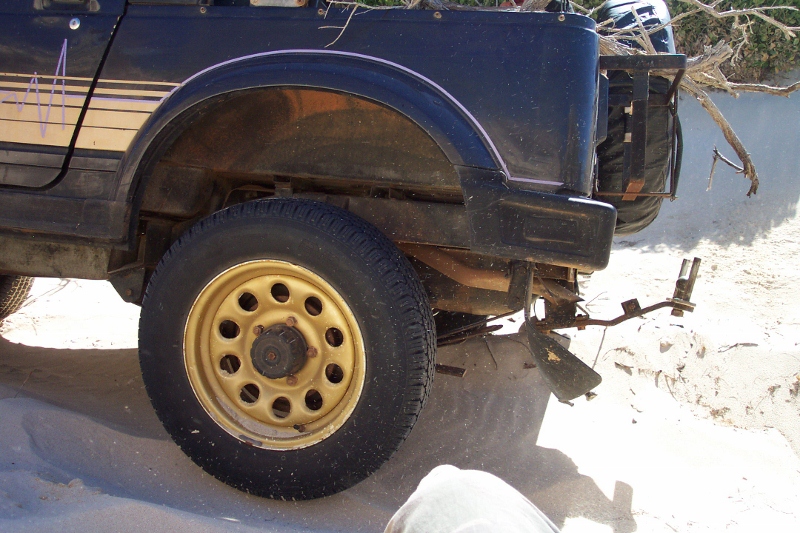

My old sierra didn’t have great articulation and without diff lockers would often lift a wheel and get stuck on uneven terrain. A diff locker would make it a piece of cake to cruise away.
